2. Using for AMD AM4 socket, support the 3rd generation for AMD Ryzen™ processor;
3. Onboard HDMI+DVI interface; RTL8111H Gigabit; ALC892 sound card;
4. 2 M.2 slots (support SATA and amp; PCIe4.0 x4 SSD); 6 USB3.1 Gen1 interfaces (5xType-A+1xType-C) and 6 USB2.0 interfaces;
5. 2 12V 4Pin RGB pins, 2 5V 3Pin RGB pins, support iGame Center lighting control software; support power-off function;
Motherboard series: for AMD series, CVN series
Chipset: for AMD B550
CPU support: use for AMD AM4 socket, support the 3rd generation for AMD Ryzen™ processor (TDP: 125W)
Memory support: Provide 4 memory module slots, support DDR4 dual channel, single memory can support up to 32GB, total memory capacity can support up to 128GB, support DDR4 4000(OC)/3800(OC)/3600(OC)/3200/3000 /2933/2800/2666/2400/2133MHZ specification memory, warm reminder: memory overclocking frequency also depends on the matching CPU and memory itself overclocking performance!
Image card support: 1 PCI Express4.0 x16 slot, 1 PCI Express3.0 x4 slot
Storage interface: 4 SATA3.0 6Gb/s hard disk interfaces, support RAID0, 1, 10
Expansion interface: IO interface: 1 PS2 mouse/keyboard universal port, 2 USB2.0 interfaces, 1 HDMI interface, 1 DVI interface, 4 USB3.1 Gen1 interfaces (3*Type-A+1* Type- C) Interface, 1 gigabit network interface, 1 group of 6-hole 8-channel audio interface. Onboard pins: 2 USB2.0 extension pins, 1 USB3.1 Gen1 Type-A extension pin, 1 COM pin, 2 12V 4Pin RGB fan pins, 2 5V 3Pin RGB fan pins
Onboard network card: RTL8111H Gigabit
Onboard sound card: ALC892 8-channel
size:245 x 245MM
Material:PCB
colour:black
Package Contents:

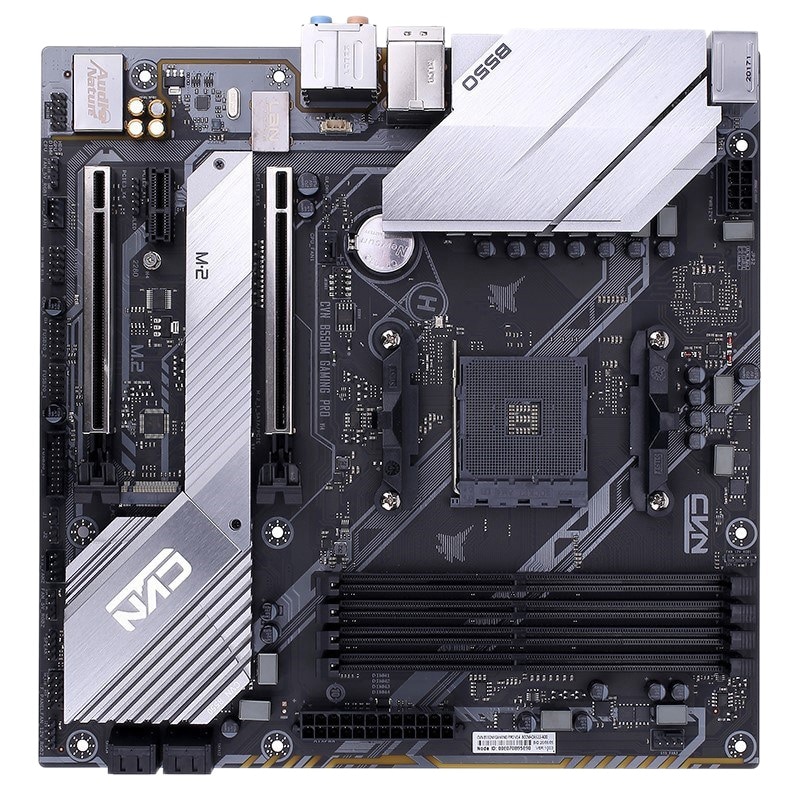

1 x B550M Motherboard
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
|
|
