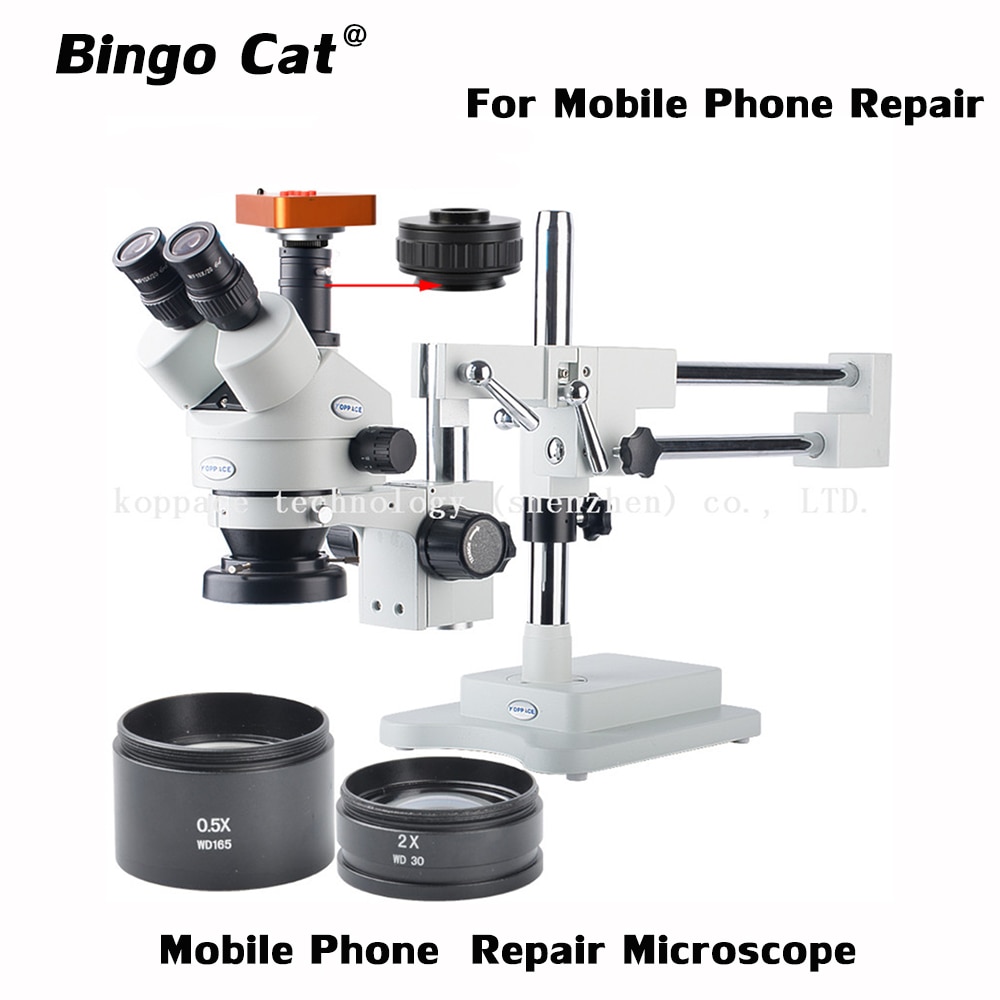

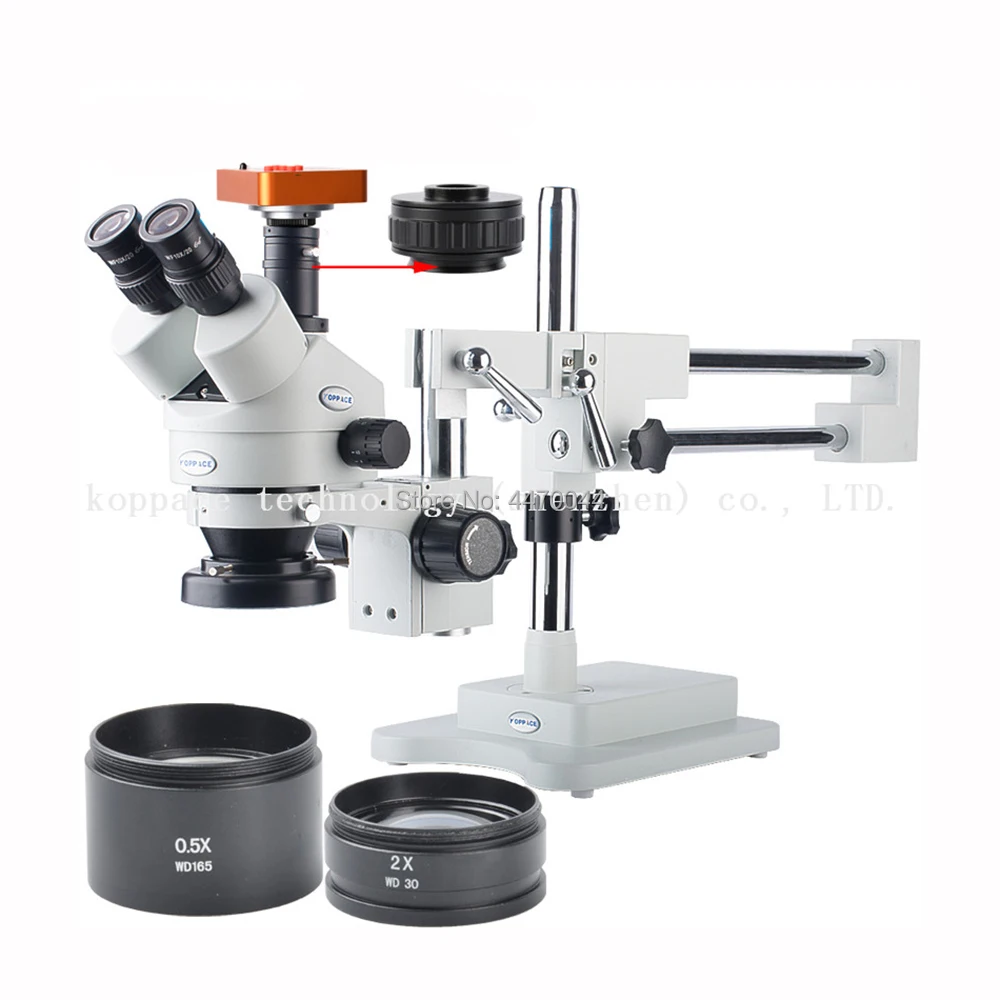

21MP Full HD 1080P 60FPS HDMI Electron Industry Digital Microscope Camera Mobile Phone Repair 3.5X-90X Stereoscopic Microscope

SALE 1% OFF

21MP Full HD 1080P 60FPS HDMI Electron Industry Digital Microscope Camera Mobile Phone Repair 3.5X-90X Stereoscopic Microscope

21MP Full HD 1080P 60FPS HDMI Electron Industry Digital Microscope Camera Mobile Phone Repair 3.5X-90X Stereoscopic Microscope

Description:

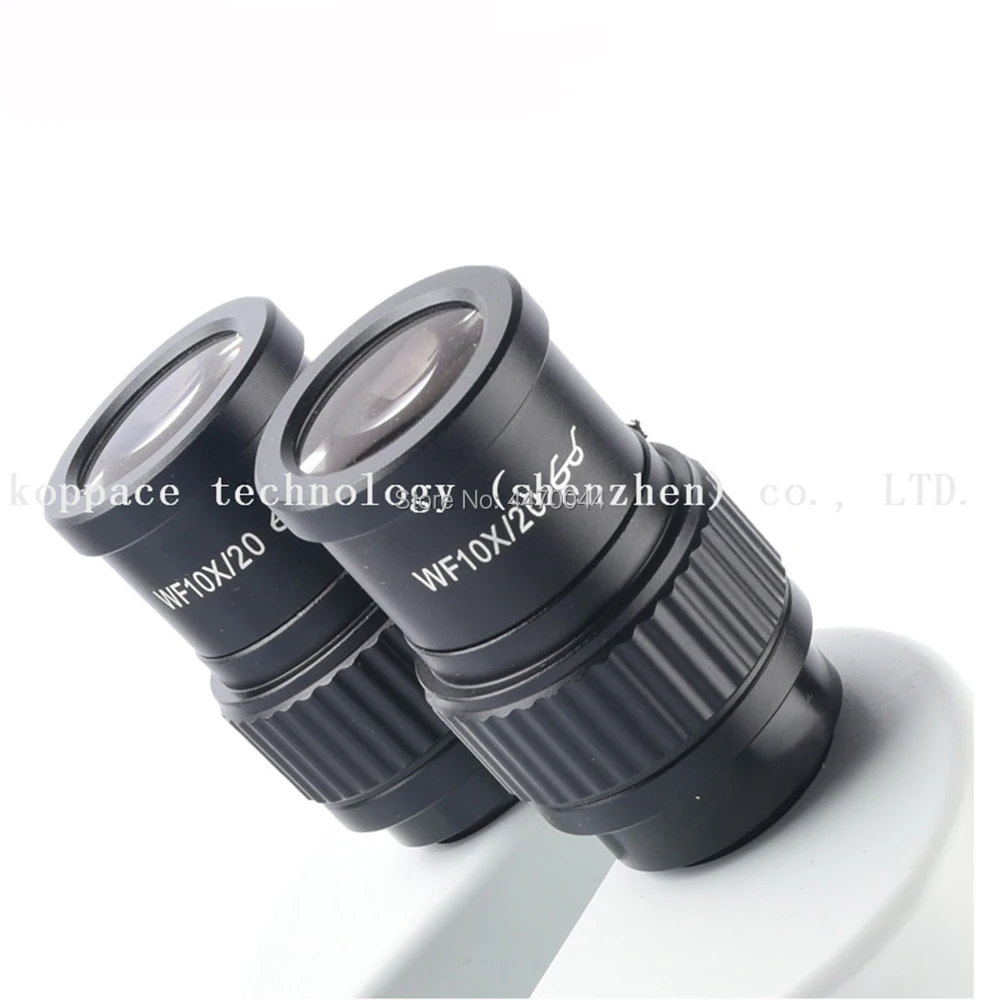

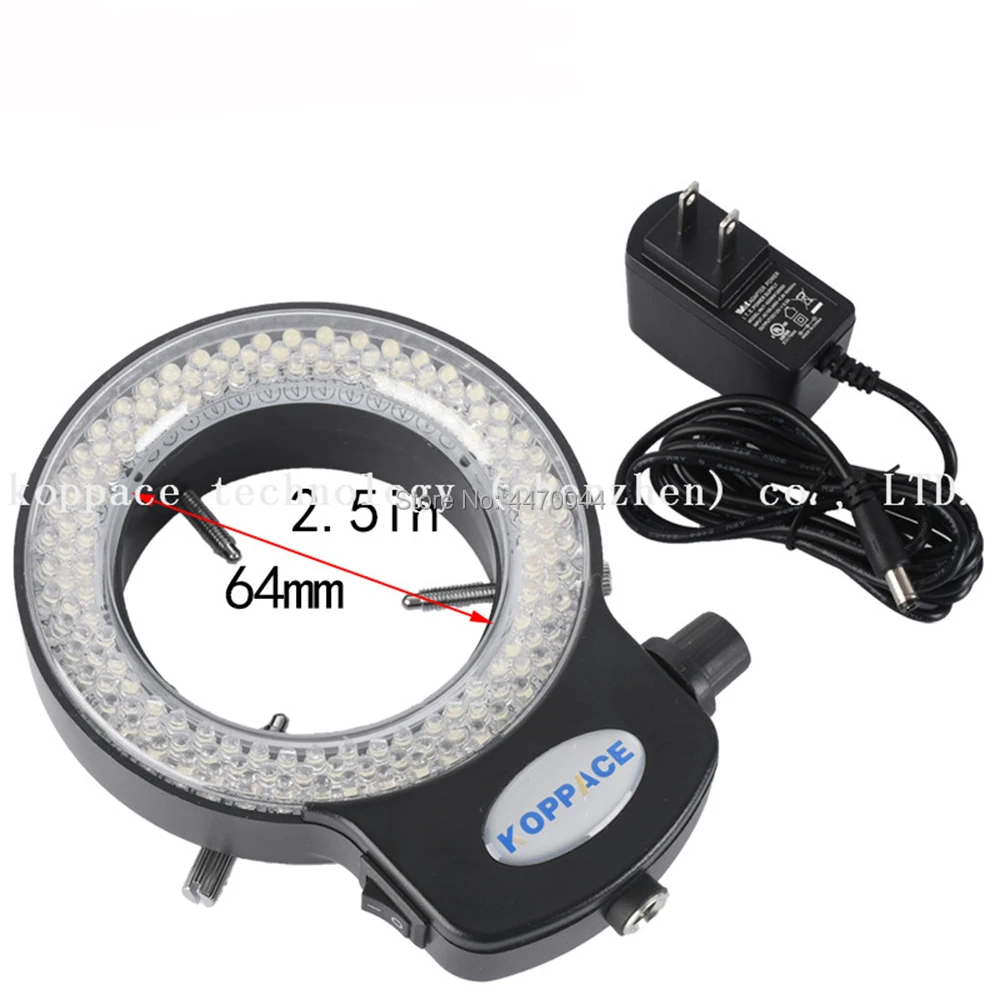

Optical Enlargement3.5X-90XEyepieceHigh eyespots wide-field eyepiece WF10X/20 mm Objective lens0.7X-4.5XViewing HeadTrinocular stereomicroscope view head inclined at 45°.The pupil distance adjusting range 54mm-76mmWorking Distance30mm-165mmAuxiliary lens0.5X/165mm,2X/30mmFocusing bracketFocusing handwheel tightness is adjustable, lifting range 50 mmDual arm bracketLifting range: 275mm, base column 210*260*51mm, lens diameter 32mm, lens aperture 76mm, vertical height 380mm, horizontal movement 235mmLED light sourceLED Qty 144,Internal diameter size 64mm,Diameter size 94mm,Input voltage AC90—240V,Maximum output power 4.5W,Voltage 12V0.5A Camera eyepiece interfaceDedicated interface 1XCTV /0.5X CTVOutput InterfaceHDMI、USBSensor 21 Mega Pixel CMOS SensorOptical format1/2.3 inchPixel size1.335µm × 1.335µmInterfaceHDMI(Type A)、USB(Type B)、TF CardImage resolution5488*4112 (for TF Card), 1920×1080(for TF Card),Video record resolution2K@30FPS,1080p@60FPSHDMI Resoltion1920*1080p 60FPSHDMI proportionSupport 4:3, 16:9, 16:10 screenUSB2.0(Drive free)1920*1080@30 1280*720@30 640*480@30TF cardMAX 64GBWhite balanceWB color correction/Auto/ManualR、G、B value setting independentExposureAuto/Manual。AE value can setCross lines8 lines.Can set color and amp; width and amp; positionScale mark lines2 lines.Dotted lines2 lines.Can set color and amp; width and amp; positionSharpness Contrast Color gainSupportMono NegativeSupportMirrorHorizontal vertical mirrorLanguageEnglish/simplified ChineseDigital ZoomSupportIR remoterSupportPower supplyDC-12V/1A

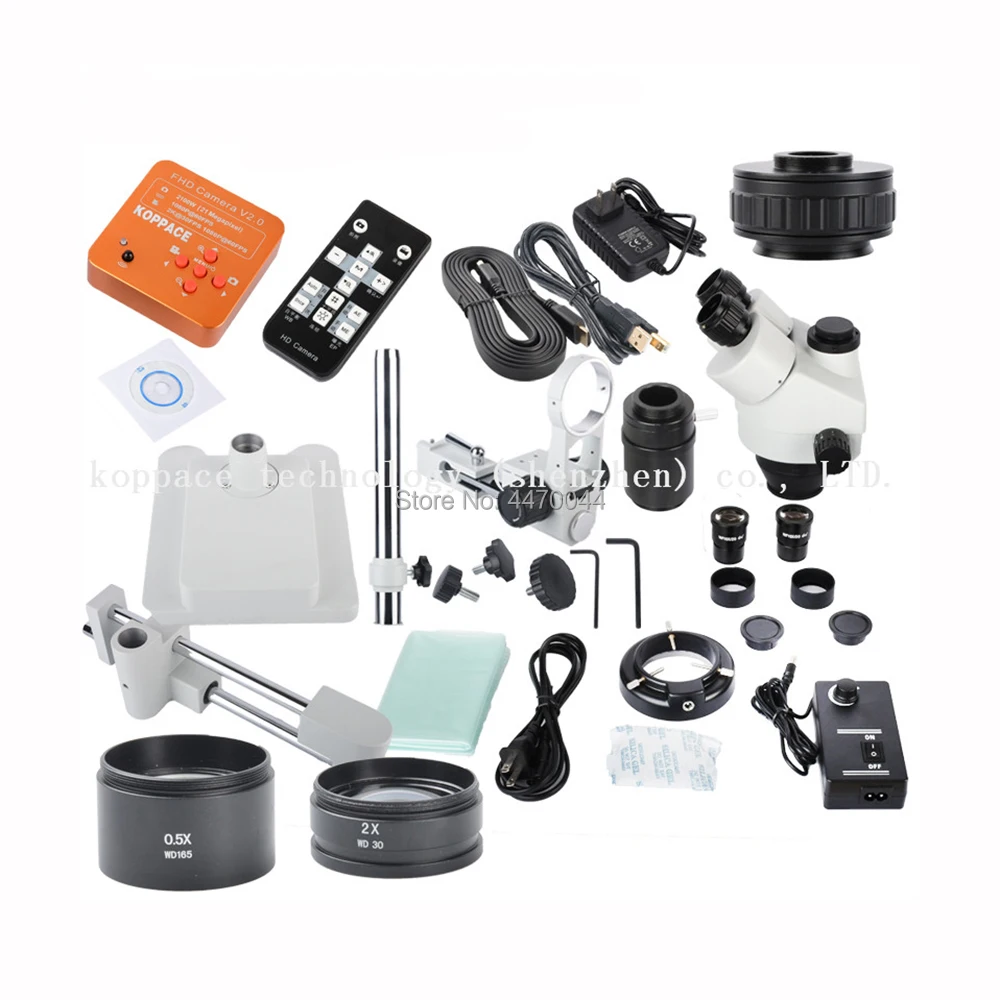

Package included:

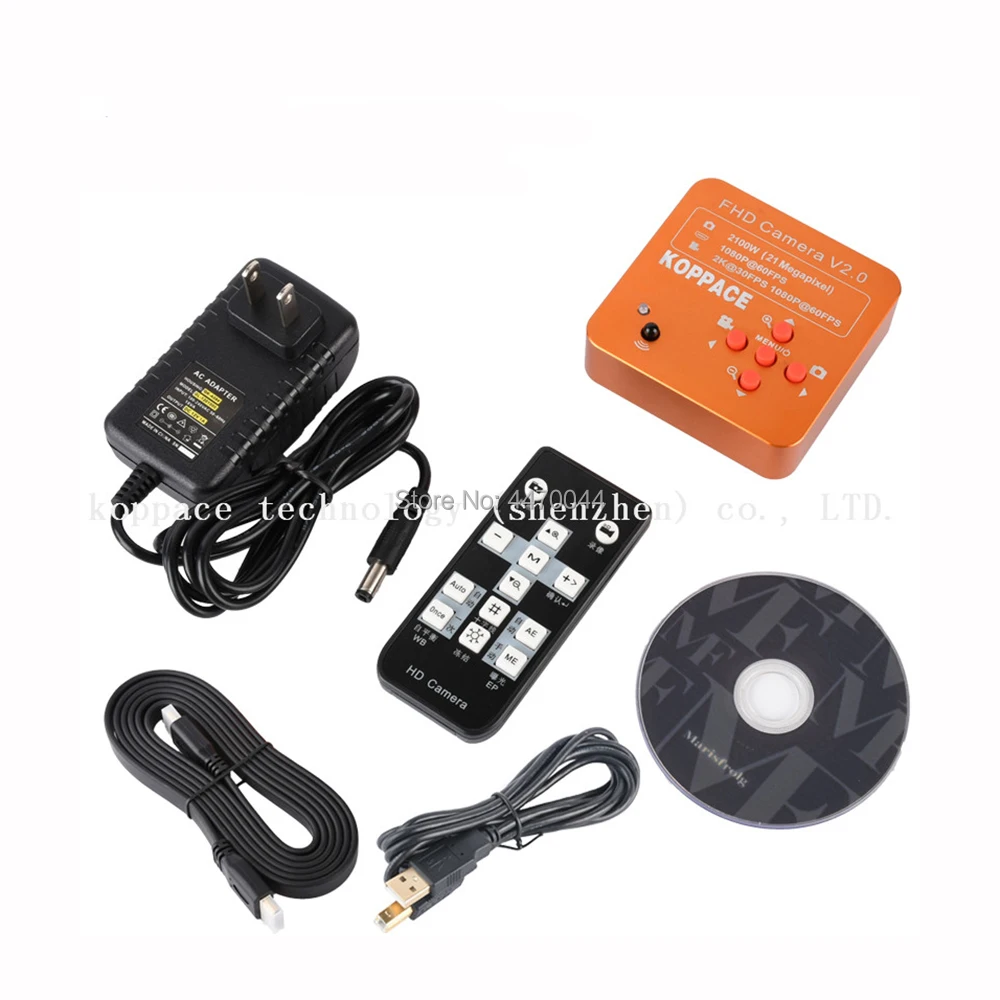

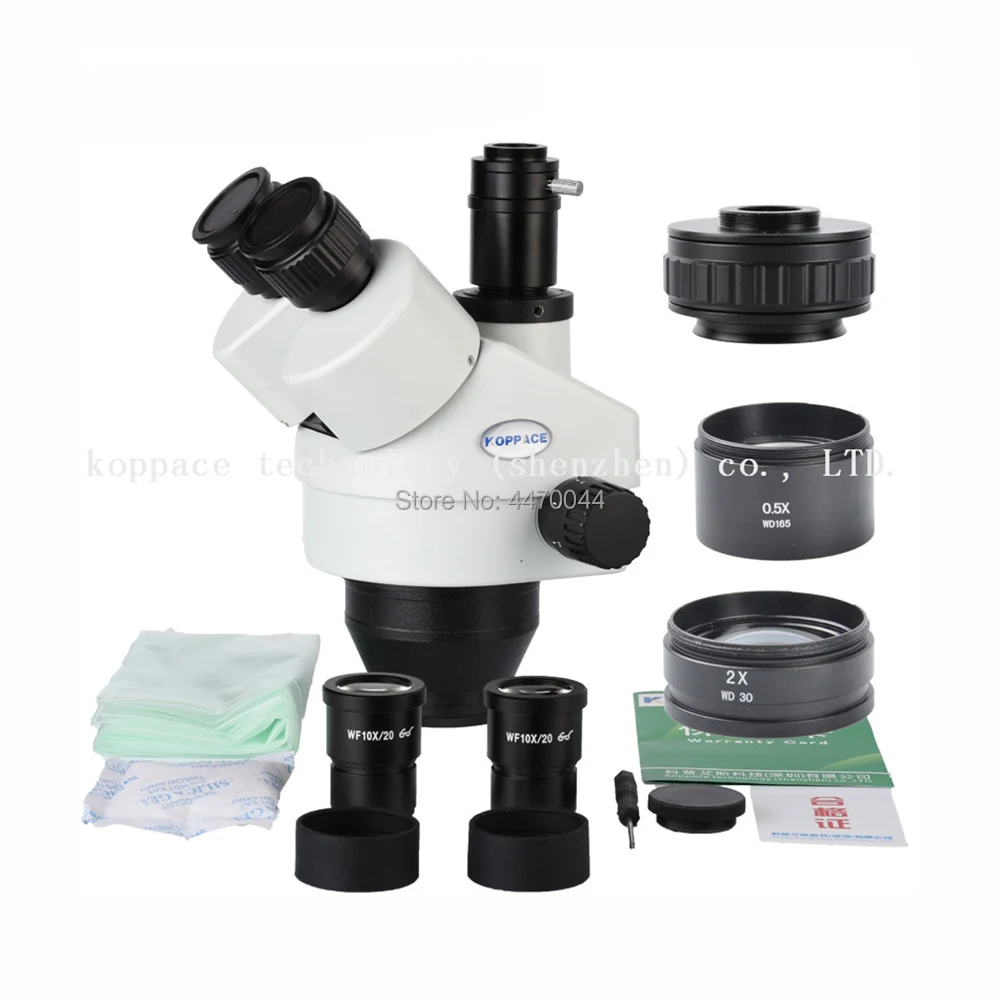

1、Eyepiece 10X/20 one pair2、Focus rack *13、Eye guards one pair4、0.7X-4.5X Trinocular zoom objective *15、144 LED ring light *16、Pillar stand and Base Plate *17、Dust cover *18、0.5X Auxiliary lens *19、2X Auxiliary lens *110、Dual arm bracket *111、21 mp microscope camera *112、HDMI high definition line*113、USB data line *114、The camera power adapter *115、CD drive*116、Remote control *117、Dedicated interface 1XCTV /0.5X CTV Customer evaluation video:https://youtu.be/uWbZM8adO0ENote: 1. Simultaneous Observation Through Both the Eyepieces and the Trinocular Port. No need to switch,Simultaneous imaging.2. This product is mainly HDMI output, USB connected computer can only display images, can not adjust parameters; remote control can not be used when connecting computer; using remote control to adjust parameters needs to be in HDMI connected monitor state.

Shipping:1.The goods only shipped after the payment received.2.We shipped goods via EMS, DHL, UPS, Airmail.3.Shipping Time:DHL/UPS: 5~7 daysEMS: 5~8 daysAirmail: normally need 10~15 days, but some countries need 20~30 days.Receiving your item:1.When you receive your item in the mail, pls inspect it right away to make sure it matches the description in the listing.2.If something is unsatisfactory, please contact us to solve the problem. It won’t happen as we double check each piece before shipment.If you are happy with the item, please help to leave us positive feedback, thanks for your supporting.Guarantee:1.If this item is defective upon receipt, customer has up to 7 days from date of receipt for exchange of a new one. (buyer should include all original items undamaged in re-saleable condition, thanks).2.We offer free repairing service within 1 year of purchase. For the first 3 months of purchase, we will pay one way shipping cost (from China to your location). After 3 months of purchase, the buyer need to pay 2 ways of shipping cost.Contact US:1.Pls feel free to contact us by message so we get back to you.We will response within 24 hours business time.Feedbacks:1.Your feedback is very important ,positive feedbacks is highly appreciated.2.Please do not hesitate to let us know before leaving any negative feedback,we will try our best to satisfy your needs.
