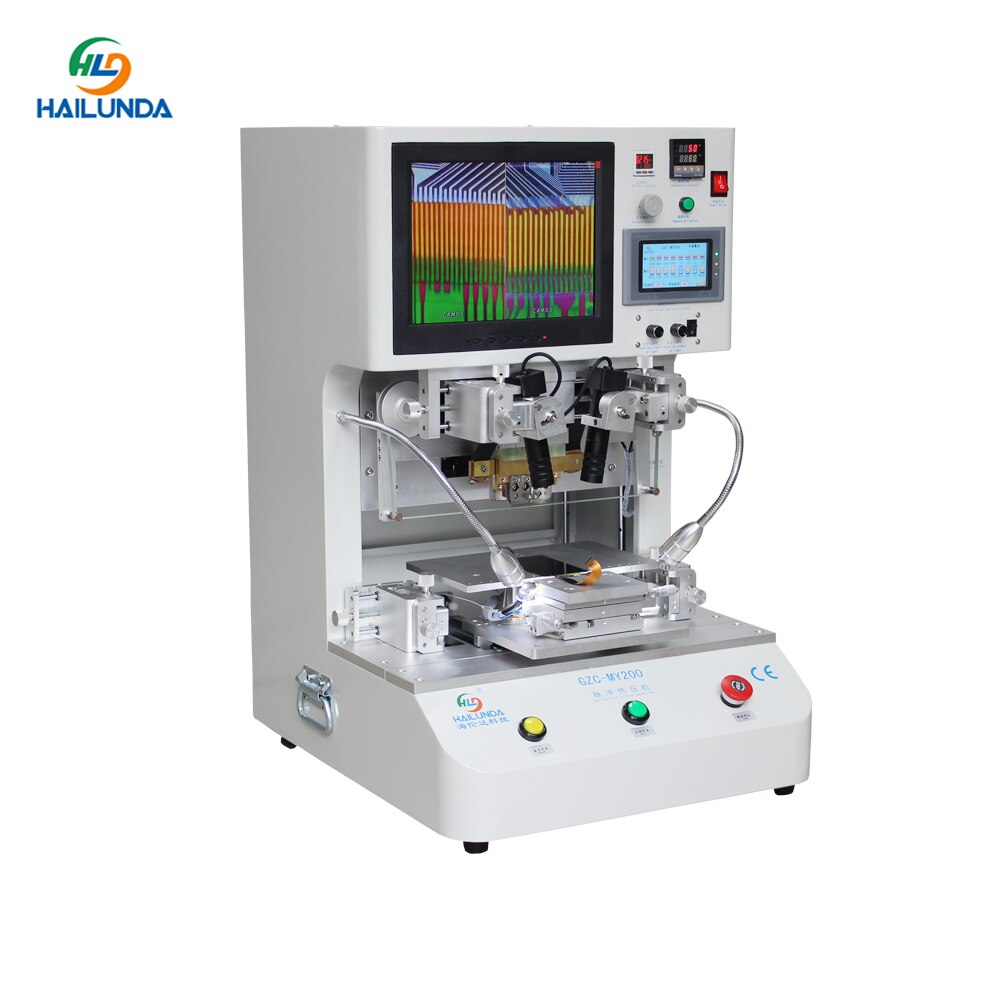

Mobile Phone Fix Pulse Hot Press LCD flex Cables Ribbon FPC ACF Bonding Machine Flex Cable Repair Welding Equipment MY200 HY100
Applications:

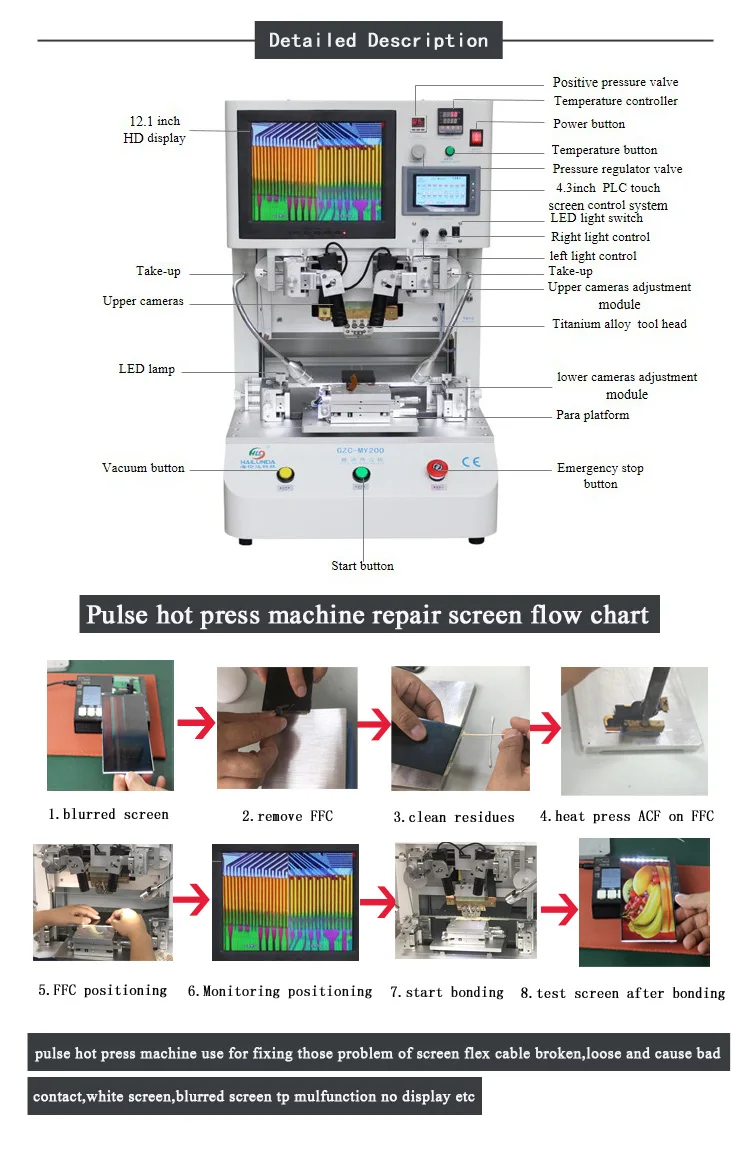

Pulse hot press machine mainly use on LCD screen FFC(Flex Flat Cable) soldering, FFC to FPC(Flexible Printed Circuit) or FFC to PCB, ACF tape (Anisotropic Conductive Film) to PCB, USB/HDMI connector to PCB, HSC(heat seal connector) to LCD screen, FFC/PIN to PCB etc, electronic production.Below cables soldering for reference.

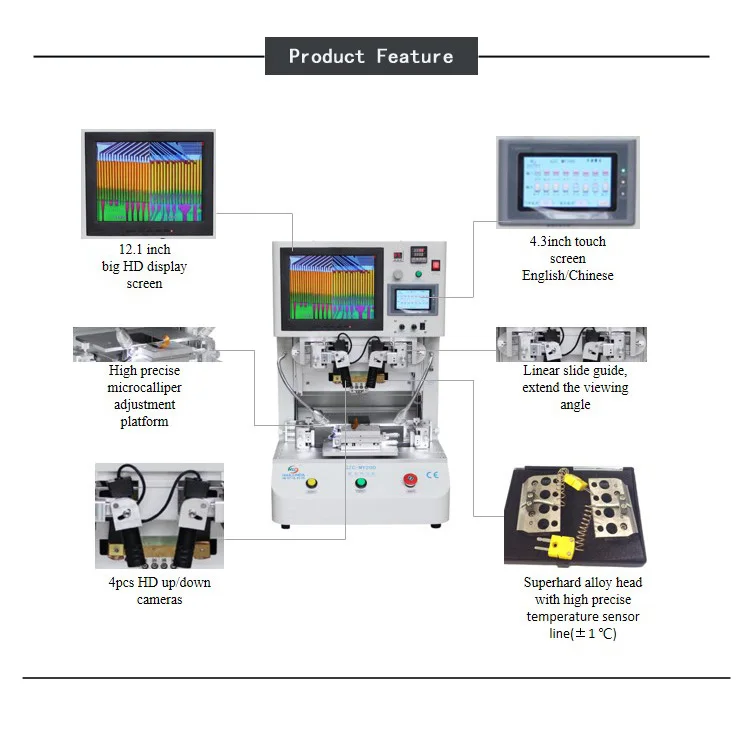

Features:
1), Built-in PID temperature control, heating can be concentrate on small area without defect nearby componensts. It will heat up instant while pressing, and fast cooling after finish pressing, so that prevent defects from soldering, such as components float, cold soldering.
2), With vacuum holes to hold the products(LCD screen) to easy align with FFC or other flex cable.
3), The temperature numerical controlled, with curve display in real time
4), 4pcs up and down dual cameras + Dual TFT monitors for precision alignment, easy operating.
5), 12.1 inch big HD display, bigger than normal machine.
6), 4.3 inch PLC touch screen control systerm(independent designed)
7), Superhard alloy head with high precise temperature sensor line(±1℃), tempereature adjustable

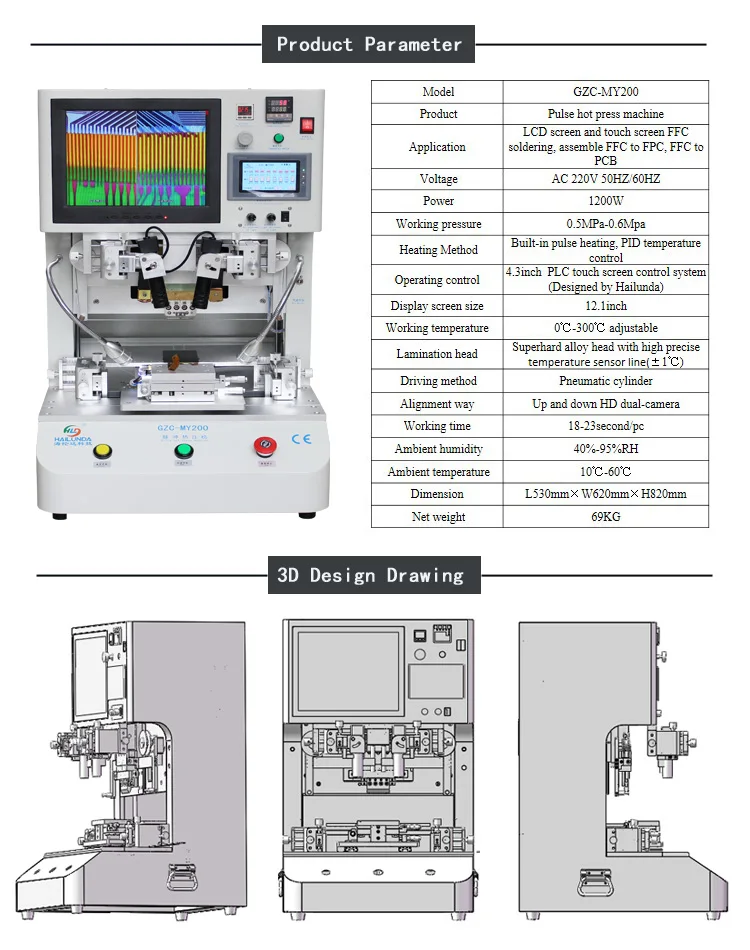

Specification:
1. MY200: Pulse Hot Press type
2. HY100: Thermostat Hot Press type
3. work with an air compressor
Sales service:
1. Free Technology Training for Clients, also have detials demo video for you.
2. One Year Warranty for Machine, free replace the parts if have anyy issue and try our best to fix problem for you.
3. Long term After-sales Service Available, we will pay a return visiti through various channels, listen to their service feedback and track the service quality.
4. Supply Refurbish Spare Parts, welcome to contact us if have any concerns.We will do our best to control the parts nice quality. If you have any problmes about the parts you purchase , pls let me know, we will contact you for detail solutions .
5. At same time, we will updated the newest mobile phone fix demo for phone repair shops around the world ,to make your work more easy and effecient.
