Soldering Flux XG-50 XG-Z40 RMA-223 NC-559-ASM Soft Solder Paste Welding Gel Tool for Phone PCB Teaching Resources Solid Pure Soldering Iron Tin Material Weld Glue For  Metalworking 4 Types Pasting





Model	Picture
XG-50
RMA-223
XG-Z40
NC-559-ASM
50G



---



Model: XG-50

Reparing Solder Soldering Paste XG-50 (XG-500) 42g Sn63/Pb37 25-45um

Specification:

Material: Plastic+solder paste
Color: As picture shown
Size: Approx. 1.30*1.30*1.14inch / 3.3*3.2*2.9cm
Type: XG-50
Alloy: Sn63/Pb37
Microns: 25-45um

Application:

Mobile phone repair, computer and digital service industries,
high-precision circuit board SMT soldering, BGA welding process, etc.



---



Model: RMA-223

Solder Soldering Paste 10cc Flux Grease RMA223 RMA-223

Description:

100% Brand New
Type : RMA-223
Joint High Intensity
Good Immersion
Volume : 10ml/10cc
Dimension : 95x35x23mm

The RMA-223 is a high viscosity no-clean flux , it can be used for PCB , BGA , PGA reworking , it can be used for soldering and reballing of computer and phone chips .
It is the mixture of high-quality alloyed powder and resinic pasty flux , it can avoid the pale yellow residue , so u are easy to clean the board.



---



Model: XG-Z40

XG-Z40 10cc Syringe Solder Paste Flux Sn63/Pb37 25-45u

Description :

The quality of solder paste, excellent wetting, high reliability.
Can effectively prevent the collapse of the printing and preheat,
Tack lasting, easy to dry, sticky time for more than 48 hours.
A colorless transparent, does not affect the test, fine-clean and cleaning performance.
Products wetting, anti-dry and strong, long shelf life at room temperature

Specification :

Type : XG-z40
Alloy : Sn63/Pb37
Microns : 25-45um
Volume : 10cc

Applications:

Adapted to the mobile phone repair industry, computer digital service industries,
High-precision circuit board soldering SMT, BGA soldering processes, etc.





---



Model: NC-559-ASM

NC-559-ASM 10cc No-Clean Environmentally Friendly Solder Paste for RC Drone

1. This product is no-clean solder paste, very little residue, without washing.
2. The residue is colorless and transparent appearance outstanding.
3. Excellent printing performance with suitable hand and machine print.
4. Suitable for BGA ball, semiconductor packaging, repair.
5. Computer motherboard north and south bridge, communications, graphics and other BGA apply.

Just apply a little each time.
It’s currently the best on the market BGA, CSP rework help paste.
When the bumping of the BGA chip coated with flux paste and PCB pads are required coat.
Good BGA soldering flux paste and machine regardless of manual welding, the success rate is greatly increased.

Specification :

Capacity : 10CC
Model : NC-559-ASM-UV



---

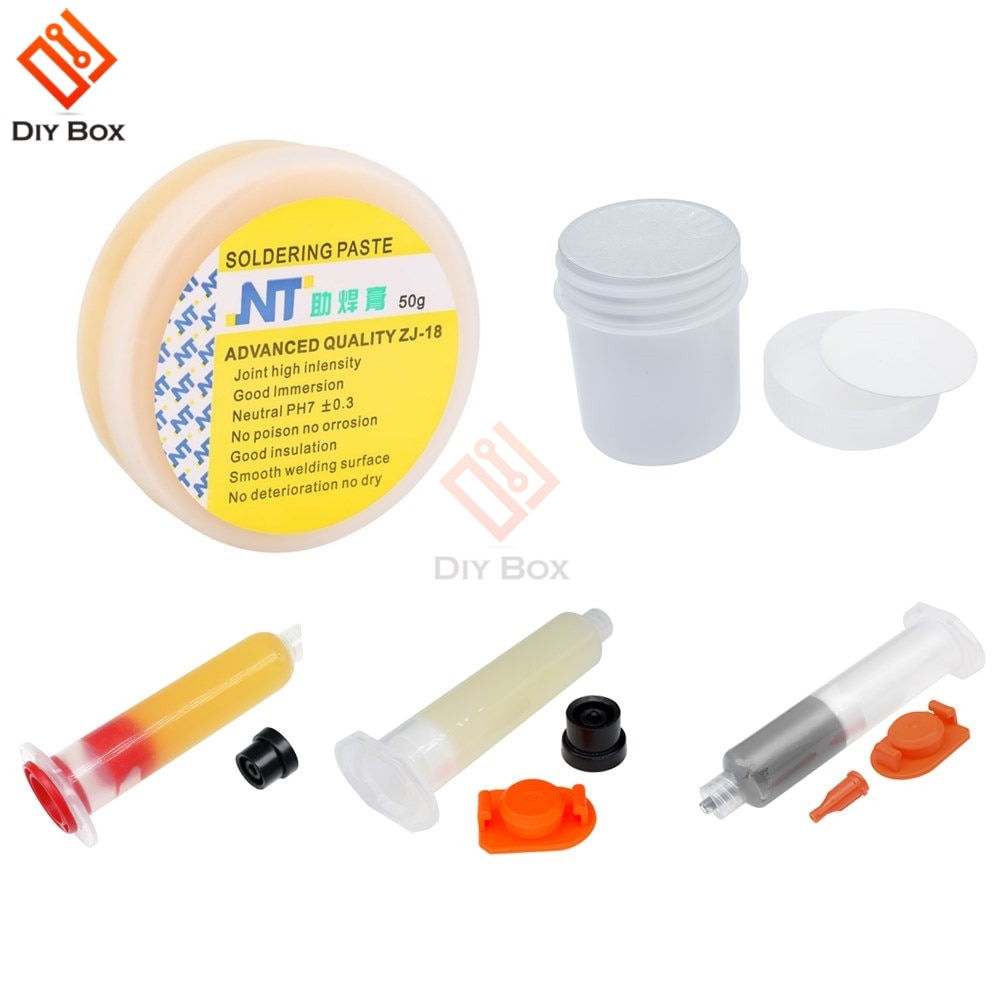

Model: 50g Soldering Paste

50g Rosin Soldering Flux Paste Solder Welding Grease Cream for Phone PCB

Features:

100% Brand new and high quality!!
Rosin flux is used to facilitate soldering.
It cleans and prevents metal oxidation which allows solder to create strong, long lasting mechanical and electrical bonds.
It also acts as a wetting agent, increasing the flow of solder and the efficiency of the soldering process.
Perfect for mobile phones, PC cards and other sophisticated electronic chip-level flux welding.

Specifications:

Box Size: 6cm x 6cm x 2.2cm
Color: Yellow

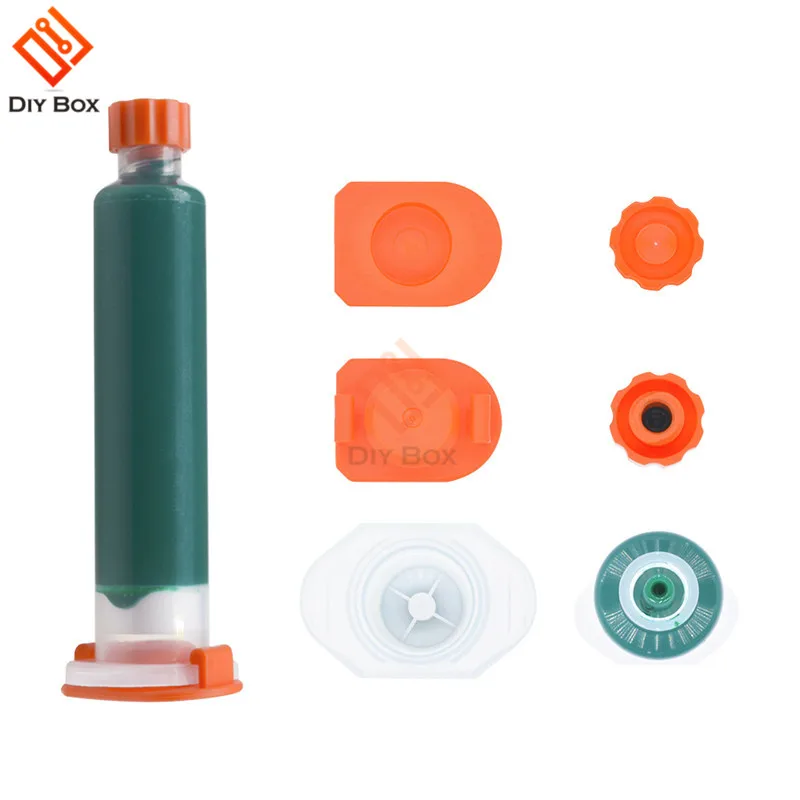

10ml PCB UV solderable solder mask repair paint green

Feature:
1.Protect PCB traces from corrosion and moisture
2. Repair PCB after soldering, rework

Usage:
1. Apply paint on your PCB
2. Apply it on the PCB and cover the transparent mask film
3. Exposure to UV light (or sun) for several minutes
4. Clean excess paint with gasoline or oil-based solvents

Specification:
100% brand new
N.W.: 10ml (10cc)

Package:
1 x 10 ml PCB solderable solder solder mask repair paint green
