product description SQ-ES126 is a MCU based on STM32, equipped with a high-definition OLED digital display, supports Type-c interface 5V power supply and firmware upgrade; three LEDs at the front end close lighting, allowing users to use and comfortable in a dark environment;
SQ-ES126 is a smart screwdriver with multi-directional angle sensing. At the same time, it is a lighting smart screwdriver, and it can also support manual mode.
Operation method
Gear setting: In the standby interface, press the A or B key three times with a single key to enter the gear setting interface, and single press to select the working gear of the screwdriver. After the selection is completed, long press or let go and wait for the data to be saved and automatically return to the standby interface.
A gear: Angle sensing mode, the shaking angle is proportional to the rotation
P, 1, 2, 3, 4 gears: the torque gradually decreases
Working voltage: 3.3-5.2V
Charging voltage: 5V
Screwdriver bit:4MM inner hexagon
Working time:60 minutes
Master:STM32
Sn:OLED
Lighting:LED
Battery:320mAh
Colour:Silver
Material:304 stainless steel + bit material S2 steel
Size:Length 136mm
Package Contents:

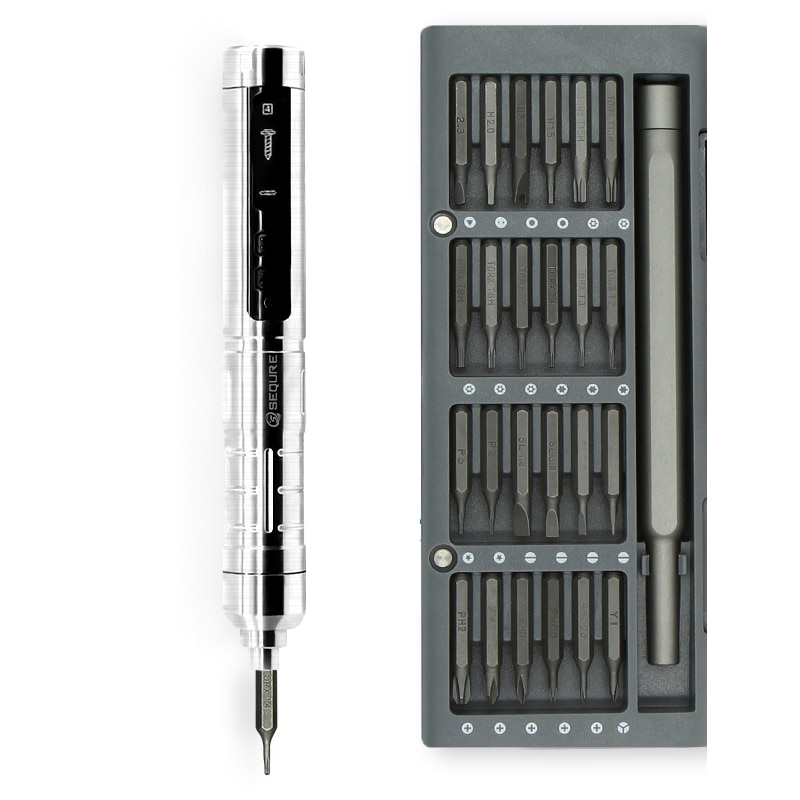

1 x SQ-ES126 smart screwdriver
1 x 24 bits
1 x manual handle
1 x manual
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
